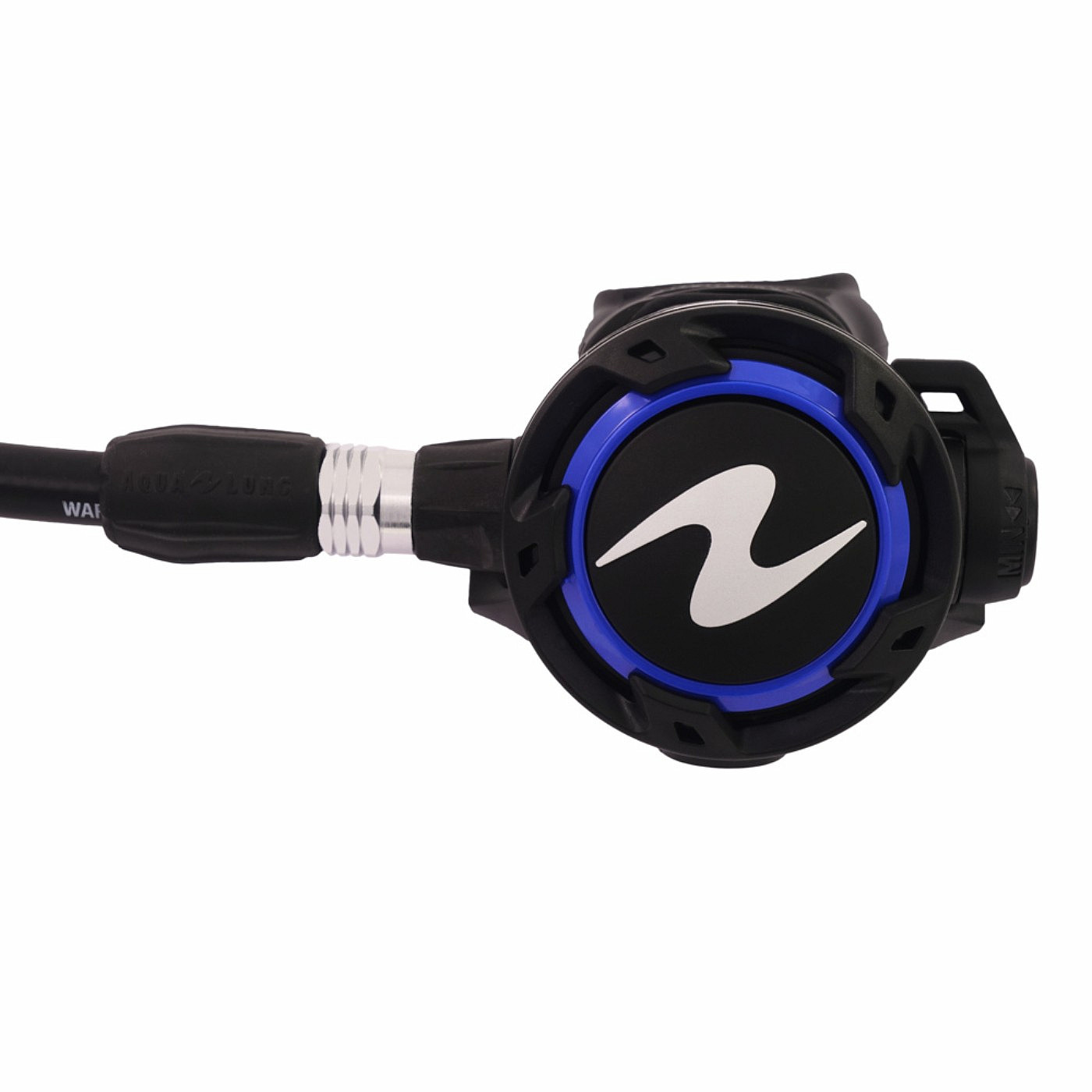

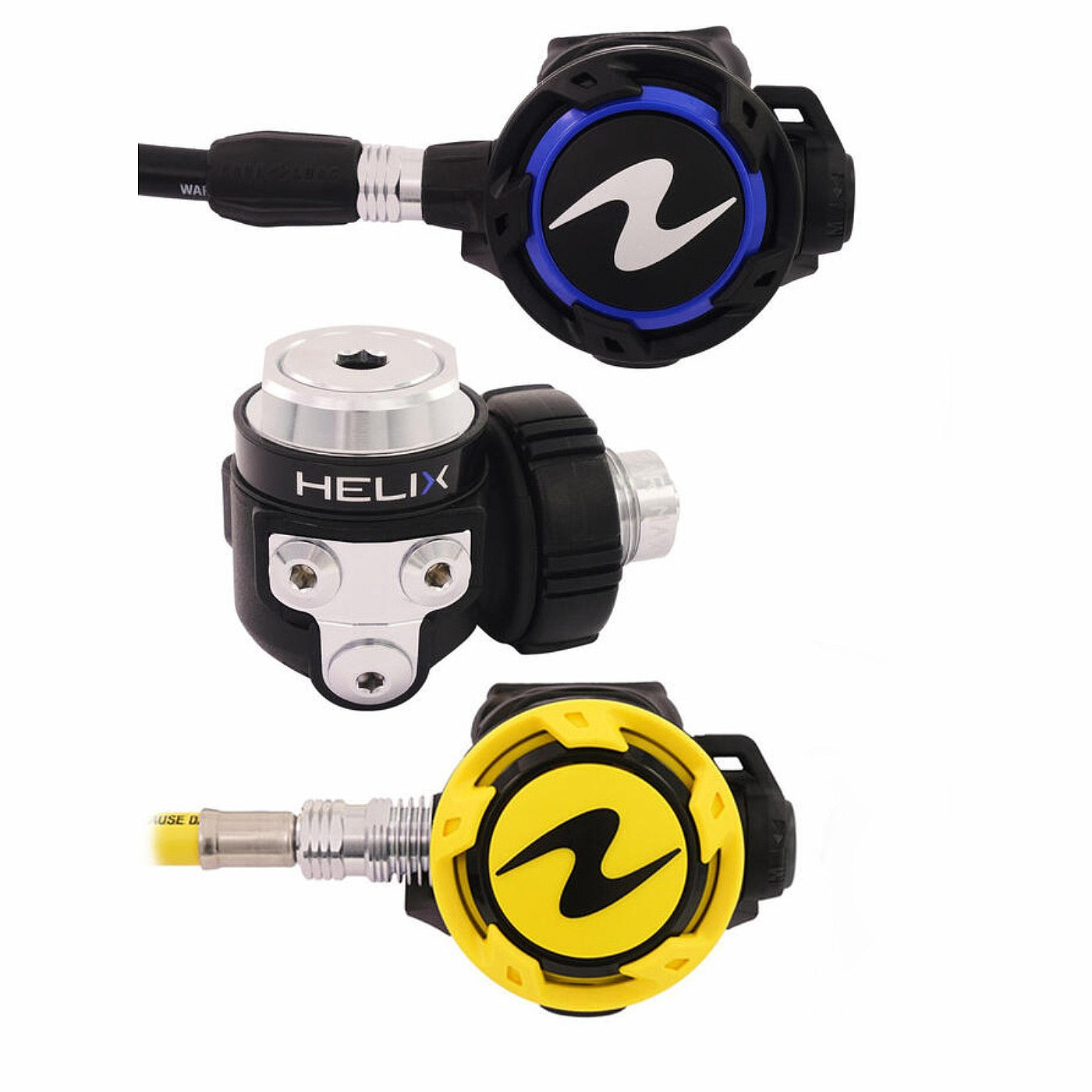

Automatic Aqua Lung HELIX DIN | With octopus HELIX

Product details Automatic Aqua Lung HELIX DIN and octopus HELIX

Automatic for technical diving, which prides itself on favoritism among automatics in the price/performance ratio. Aqua Lung HELIX received an "excellent" rating on the ANSTI breathing apparatus.

There is also the patented ACD function, when after removing the pressure cylinder from the valve, the first stage is closed, which protects against dirt. The DIN version is made up to max. 300 bar.

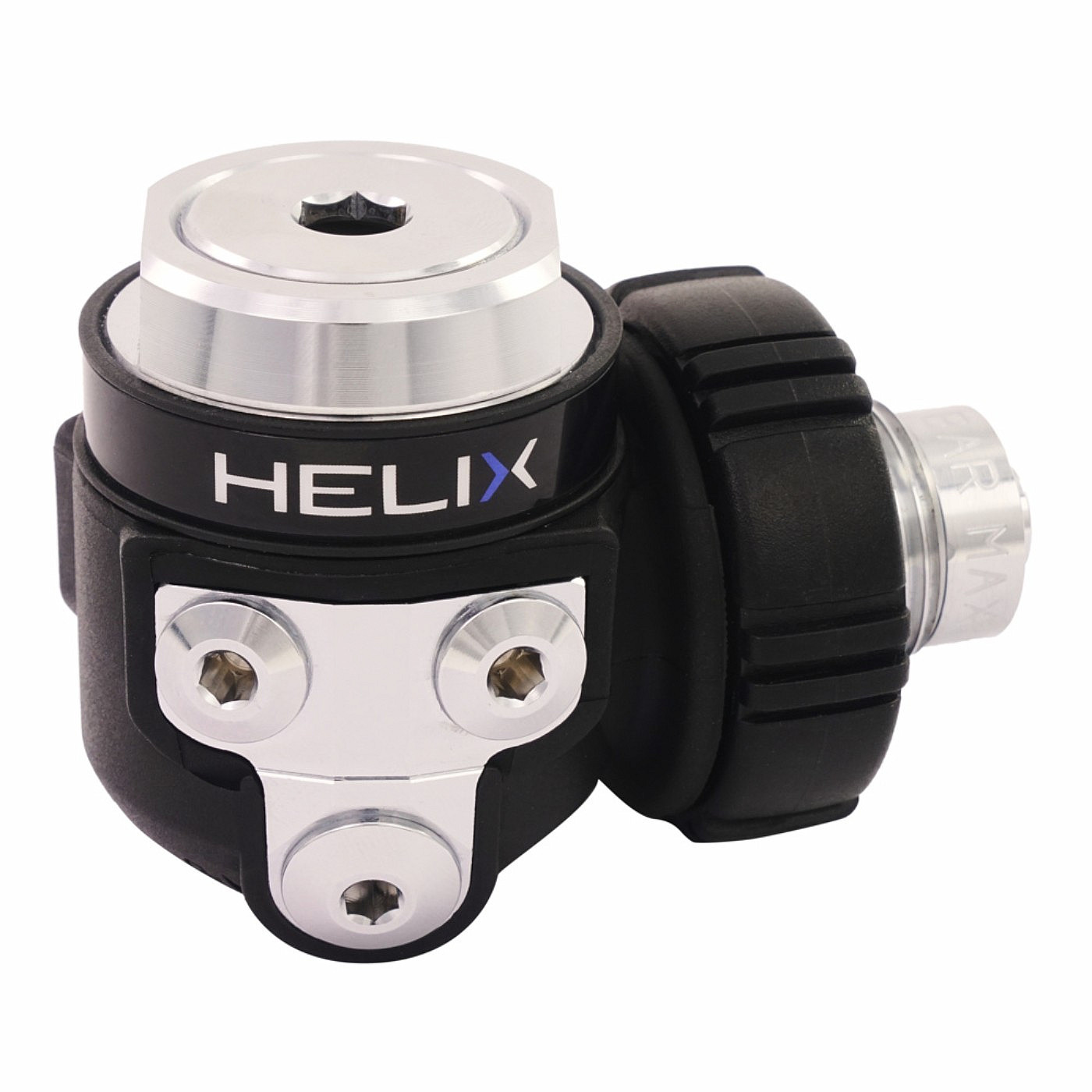

Stage I is membrane-balanced, which provides stable performance. II. stage is pneumatically balanced for easy and smooth breathing.

For comfortable diving, the T-shaped automatic stage I is equipped with 4 medium-pressure inlets and 2 high-pressure inlets.

For the maximum comfort of the diver, the automatic has a patented Aqua Lung Comfo-bite™ mouthpiece with a tightening band. The so-called venturi lever serves to improve performance in depth and eliminate freeflow.

Specifications:

• HELIX DIN
• First Stage Type: Balanced Diaphragm
• ACD: Yes
• Number of HP ports: 2
• Number of LP ports: 4
• First stage flow rate: 1450 l/min
• Weight of DIN class I: 527 g
• Dry chamber: NO
• First Grade Finish: Chromed Navy Brass
• Control: Lever venturi
• Inspiratory Resistance: Preset
• Mouthpieces: 2 – Comfobite fitted and standard with wings in the package
• Heat exchangers: On all models
• Libra II. degrees: 186 g
• Hose length: 730 mm
• HELIX Total Work of Breathing (WOB): 0.85 joules/liter
• Nitrox compatibility: Yes up to 40%

Thanks to the extensive use of these automatics, service is trouble-free and spare parts are available.
